FRP Grating Manufacturer for Corrosive& Heavy-Duty Applications
Molded & Pultruded GRP Grating · Vinyl Ester · Custom Sizes · Engineering Support — ISO 9001 certified factory with 20+ years experience.

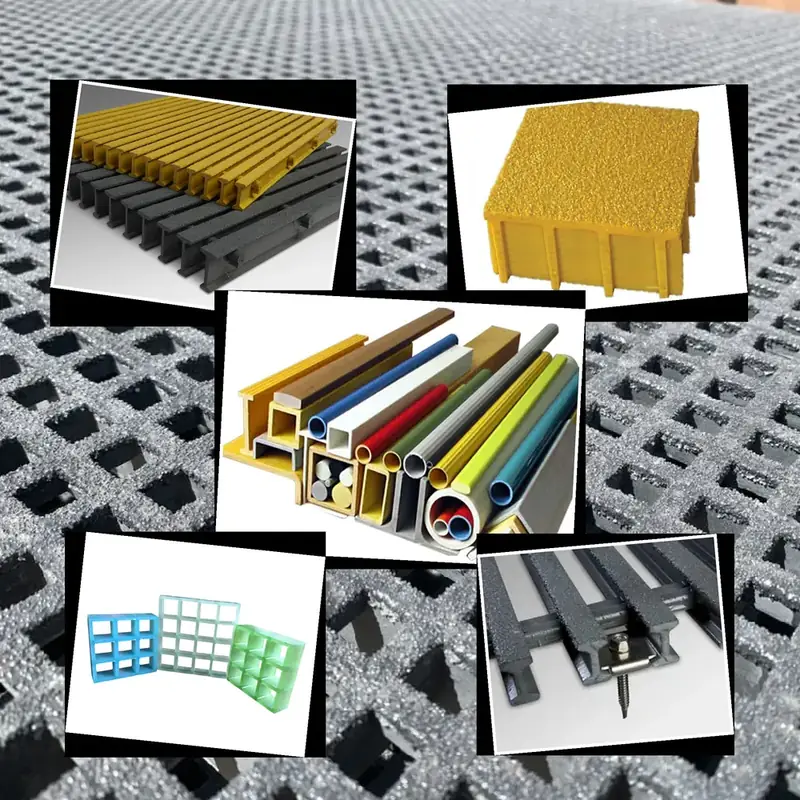

Comprehensive FRP Product Line
From standard grating panels to fully custom composite parts — manufactured in-house with multiple resin grades and color options.

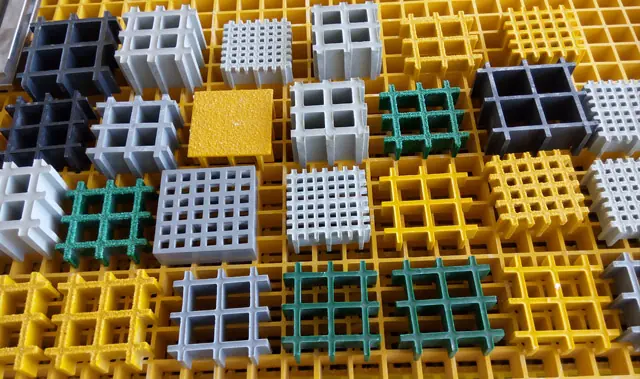

FRP Molded Grating
Bidirectional strength, corrosion resistant, customizable sizes
View Details
FRP Pultruded Grating
Heavy-duty load bearing, large span capability
View Details
FRP Covers & Panels
Solid covers, anti-slip, full coverage
View Details
FRP Pultruded Profiles
I-beam, channel, angle, tube - steel replacement
View Details

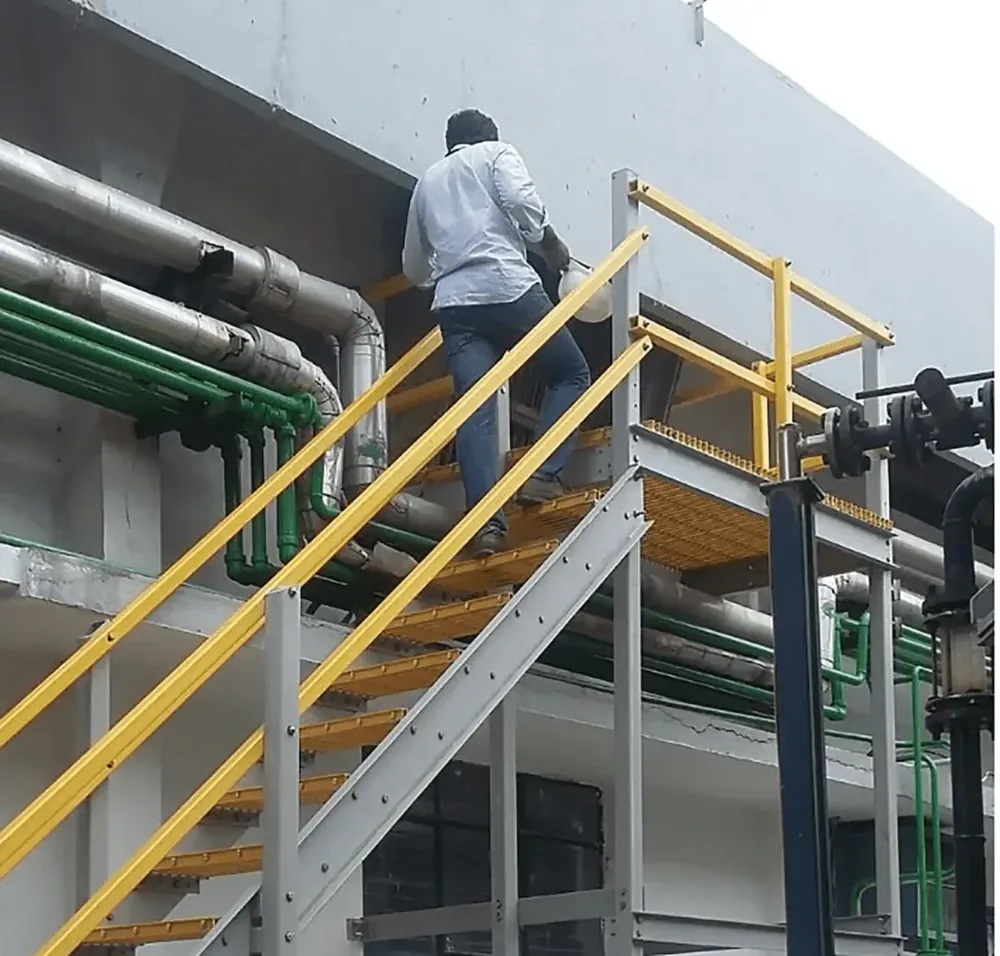

FRP Handrail & Stair
OSHA compliant handrail, ladders, stair treads
View Details
Fiberglass Fabric
E-Glass woven fabric 200-800 g/m2 for FRP reinforcement
View Details
Fiberglass Mesh & Tape
Alkali-resistant mesh & self-adhesive tape, 80-200 g/m2
View Details
Grating Clips & Fasteners
M/C/L/Z clips, SS304/SS316/HDG
View DetailsDeep Technical Support & Manufacturing Expertise
Our in-house engineering team supports every project from material selection to structural design, tooling and quality verification.
Material Engineering
Expert resin selection for every corrosion environment.
- Polyester / Isophthalic / Vinyl Ester
- Fire-retardant & UV-stabilized grades
- Glass fiber content optimization
Structural Design
Load calculations and custom cross-section engineering.
- Load capacity verification
- Custom profile & panel design
- CAD drawing & 3D modeling
Tooling & Molding
In-house mold fabrication for custom composite parts.
- Molded grating dies
- Pultrusion die design
- Custom mold rapid prototyping
Quality Testing
Comprehensive inspection at every production stage.
- Dimensional & thickness checks
- Load & deflection testing
- Resin content & barcol hardness
Engineered for Demanding Industrial Environments
Verified performance data, third-party certifications, and full technical documentation — everything engineers need to specify with confidence.
Load & Deflection Data
Comprehensive load tables for 25/30/38/50mm panels. Span vs. load vs. deflection calculations available per project.
ASTM E-84 Fire Rating
Class B flame spread index. Phenolic grade achieves V-0. Test reports available upon request.
Chemical Resistance
Tested against acids, alkalis, solvents, saltwater. Resin selection guide for 50+ chemical environments.
Resin Systems
Isophthalic Polyester, Vinyl Ester, Orthophthalic. Each with documented corrosion and temperature performance.
Glass Content & Strength
30-45% glass fiber content by weight. Bidirectional strength for molded, unidirectional for pultruded.
Slip Resistance
Grit-top surface achieves R13 anti-slip rating. Concave, smooth, and covered options for every environment.
ISO 9001 Quality Control
Incoming material inspection, in-process QC, batch testing, dimensional verification, final inspection.
Third-Party Test Reports
Independent lab testing for fire, load, chemical resistance, UV aging. Full documentation package available.
Personalized FRP Composite Solutions
From your initial requirement to final delivery — our engineering team guides every step of your custom project.
Requirement Analysis
Understand your application, load, environment and budget.
Engineering Design
Material selection, structural calculation and CAD drawings.
Prototype & Tooling
Sample production and mold fabrication for approval.
Factory Production
Mass production with strict in-process quality control.
QC & Delivery
Final inspection, packaging and global shipment.

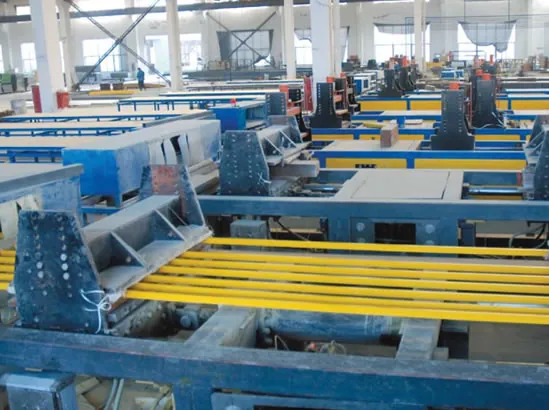

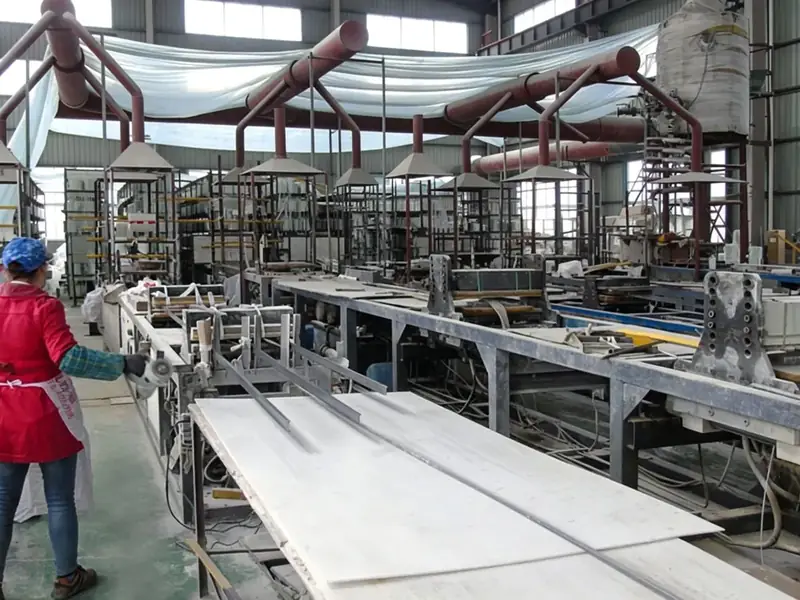

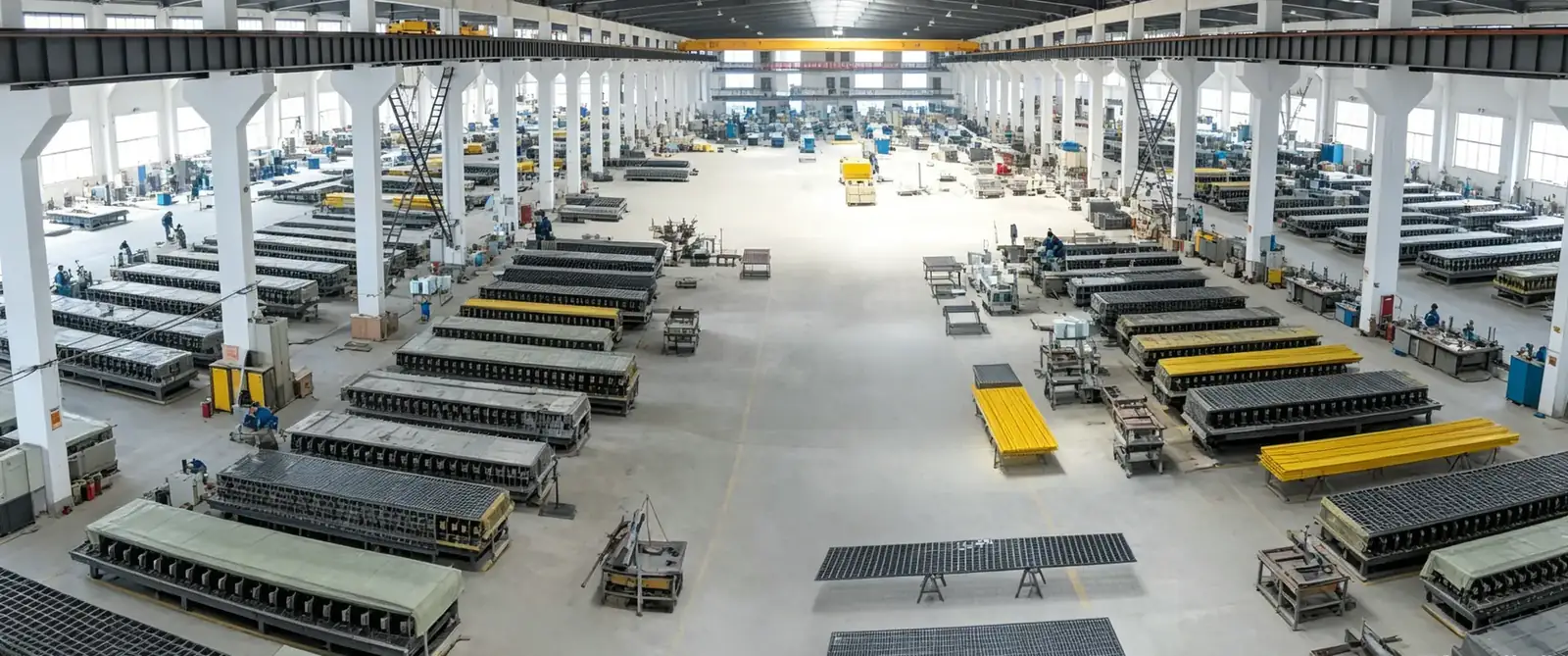

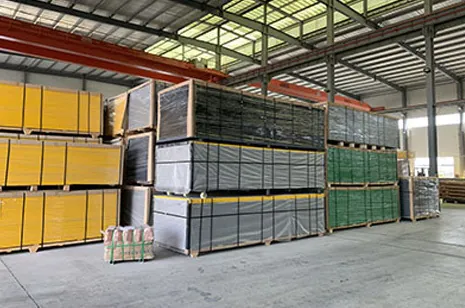

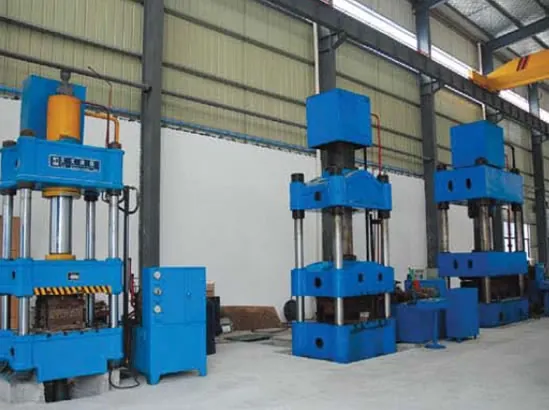

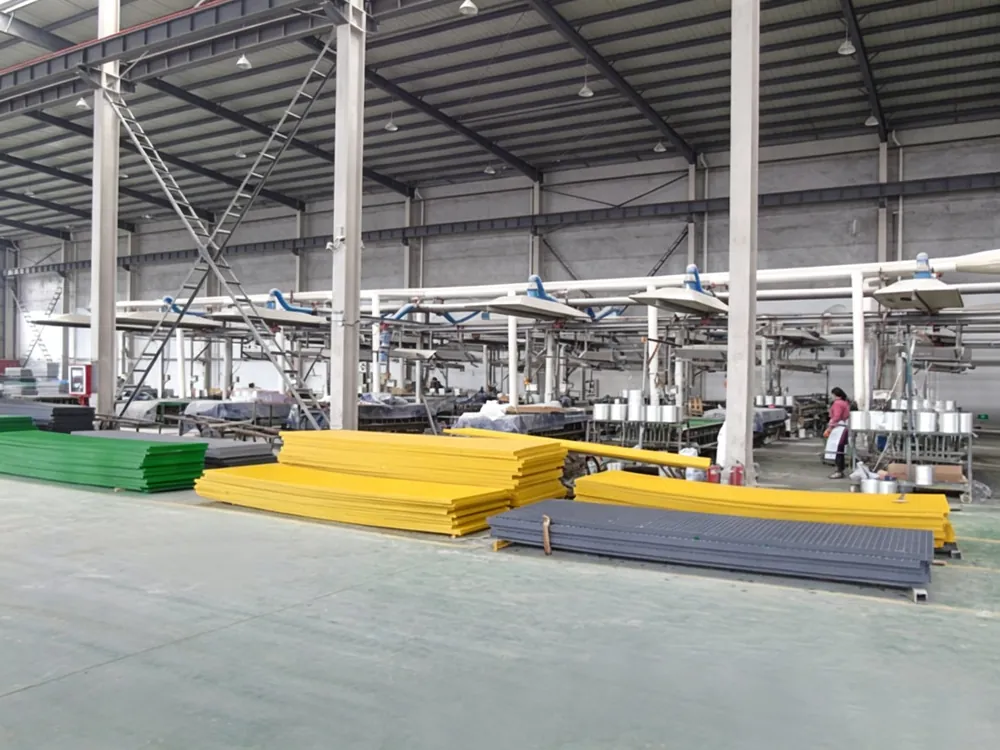

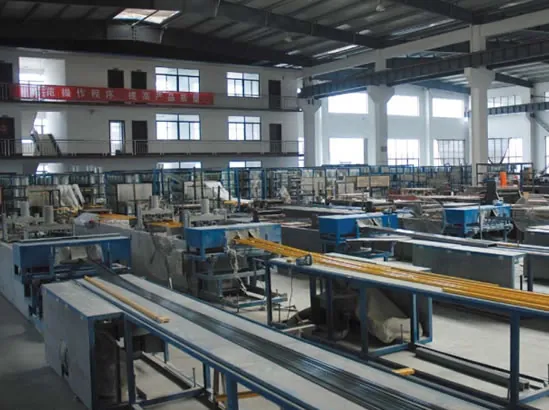

A Real FRP Manufacturing Factory
We operate a complete production facility with molded grating lines, pultrusion machines, custom molding workshops and in-house quality testing. Every product is manufactured under our direct control — from raw resin to finished panel.
As a direct factory, we control cost, lead time and quality at every stage — enabling competitive pricing and reliable delivery for projects of any scale.
Learn About Our Factory →
Trusted Across Major Industries
Our FRP solutions are deployed in the world's most demanding sectors — where corrosion, load and safety matter most.

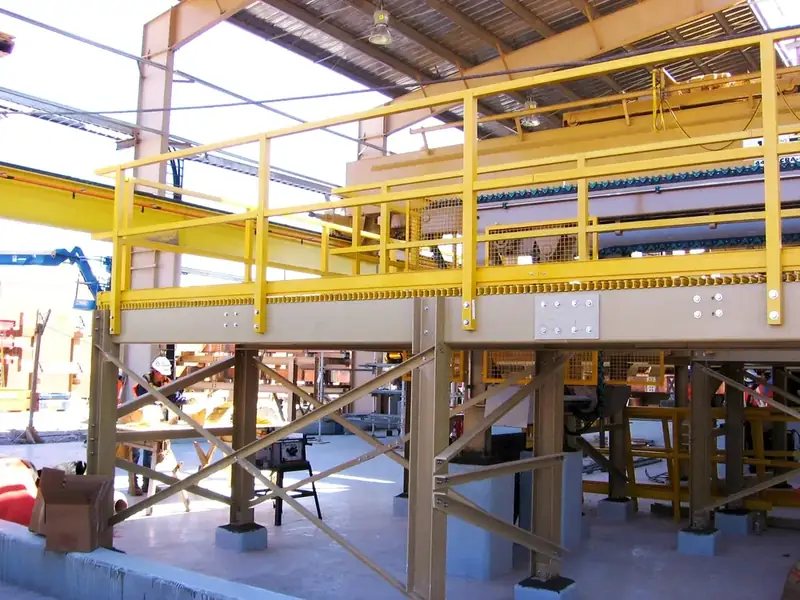

Recent Project Highlights

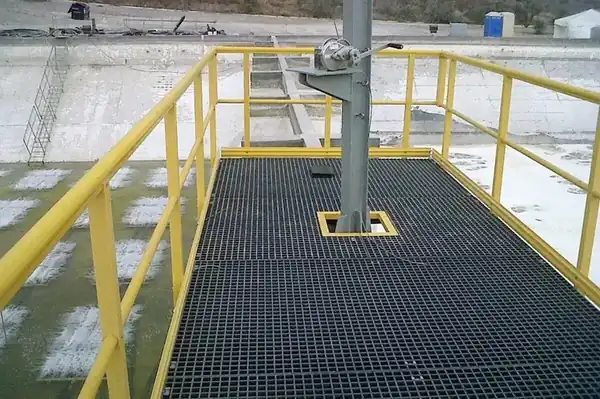

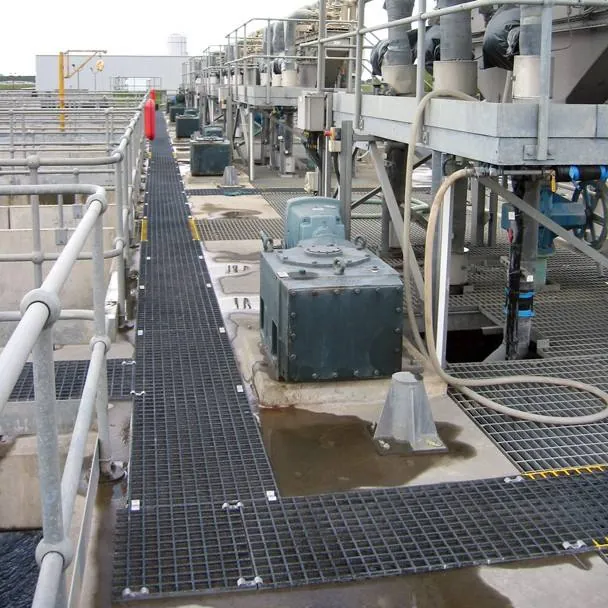

Wastewater Treatment Plant — Germany

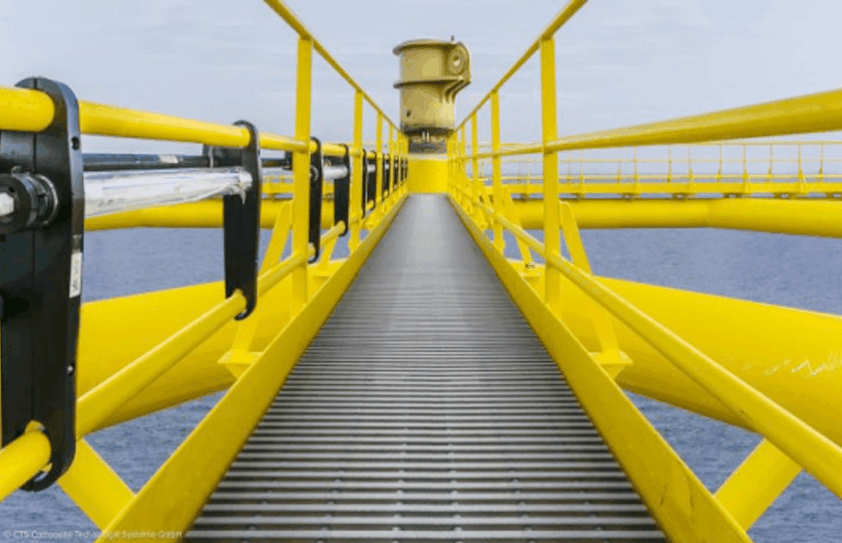

Offshore Platform Walkway — Norway
Chemical Plant Platform — Netherlands

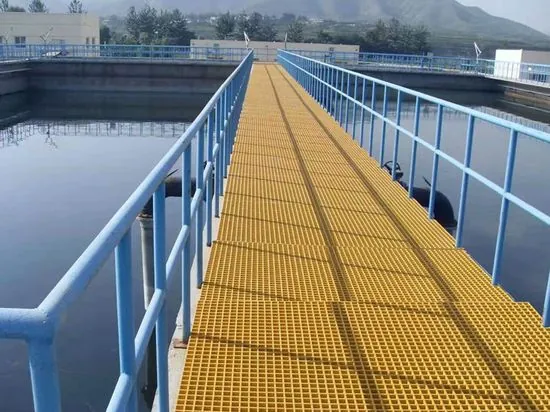

Municipal Wastewater Plant — USA

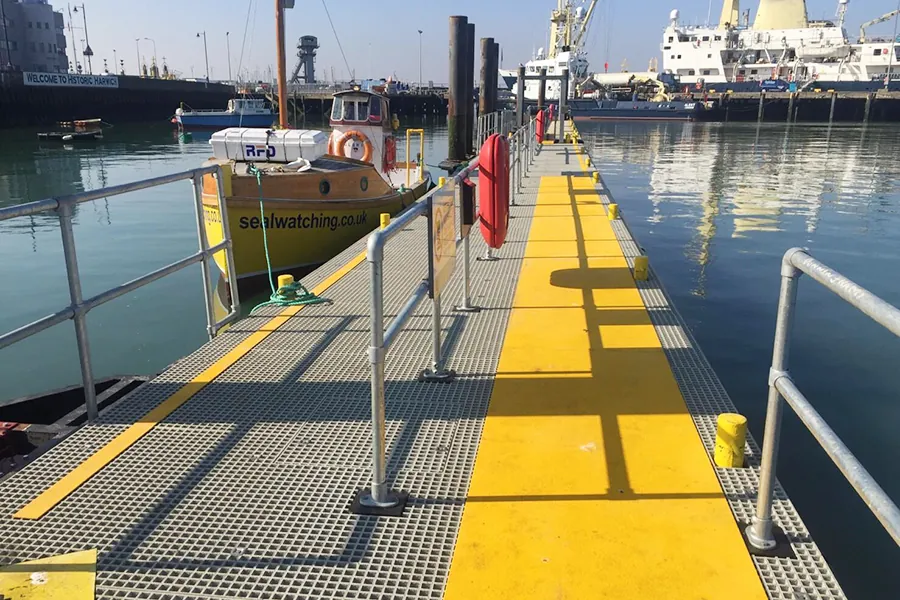

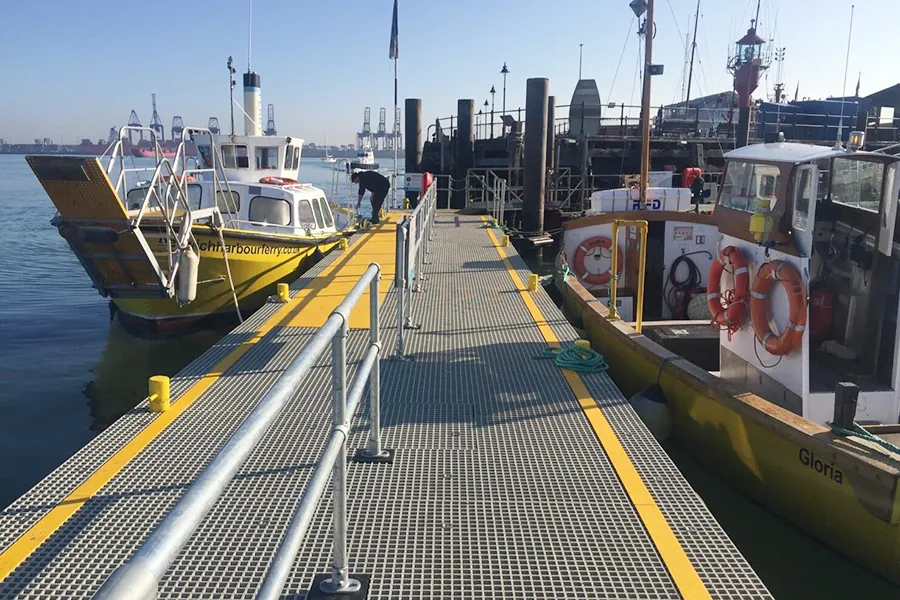

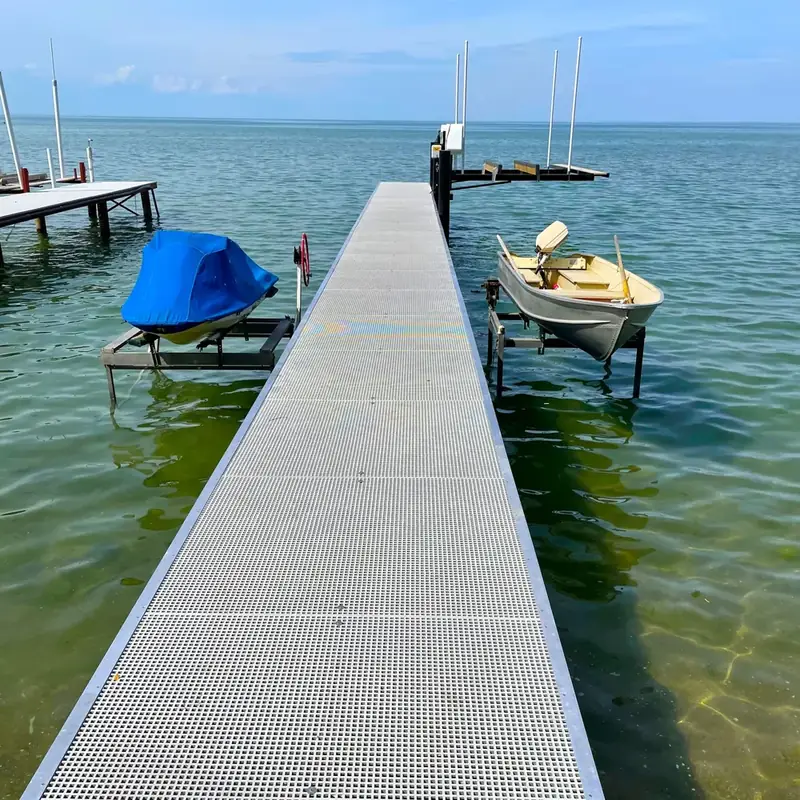

Marina & Ferry Terminal — Australia

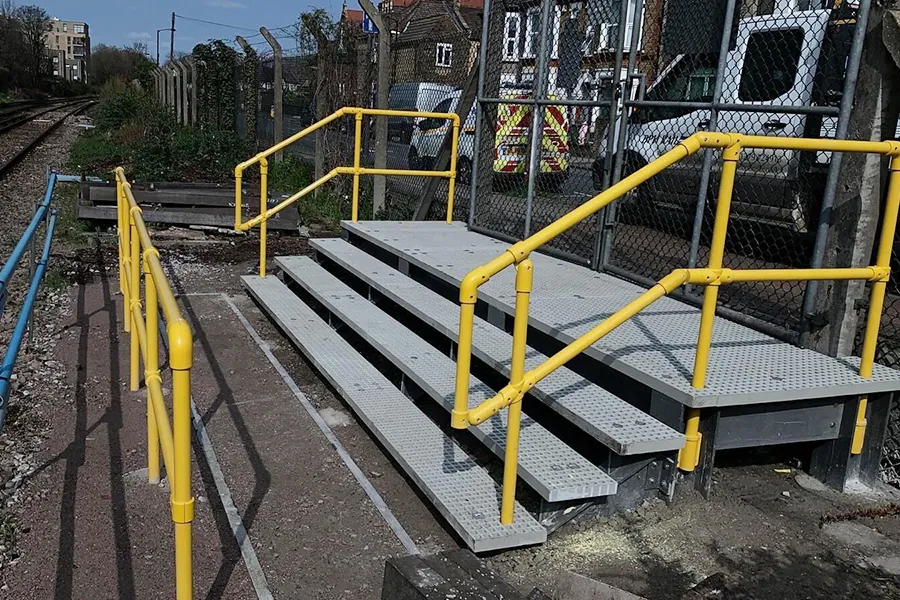

Railway Access Staircase — UAE

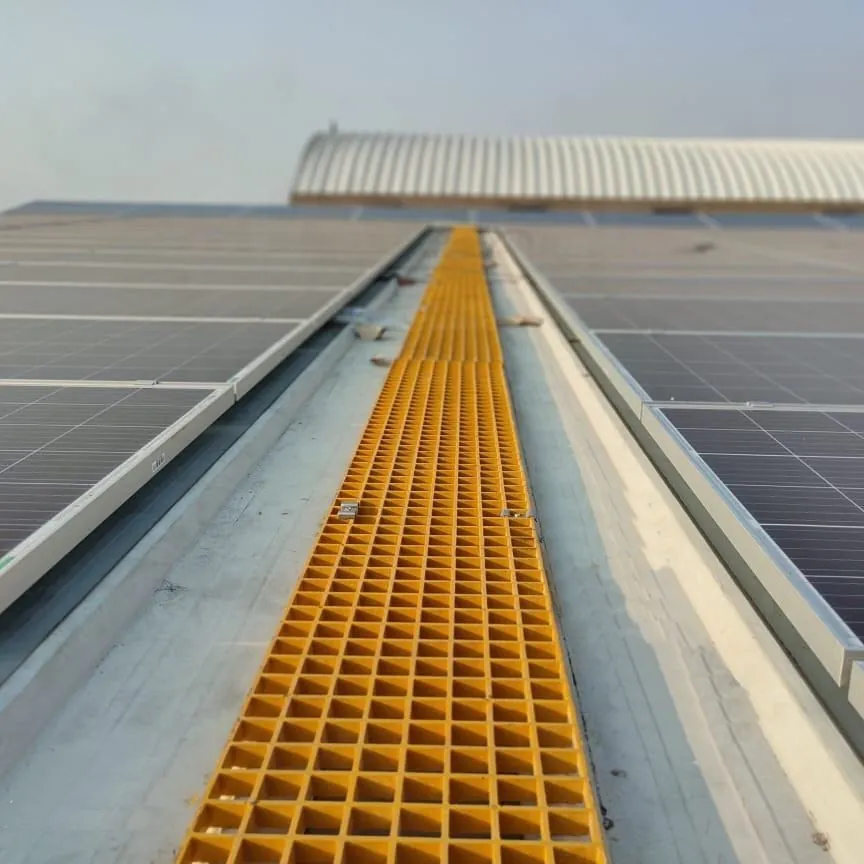

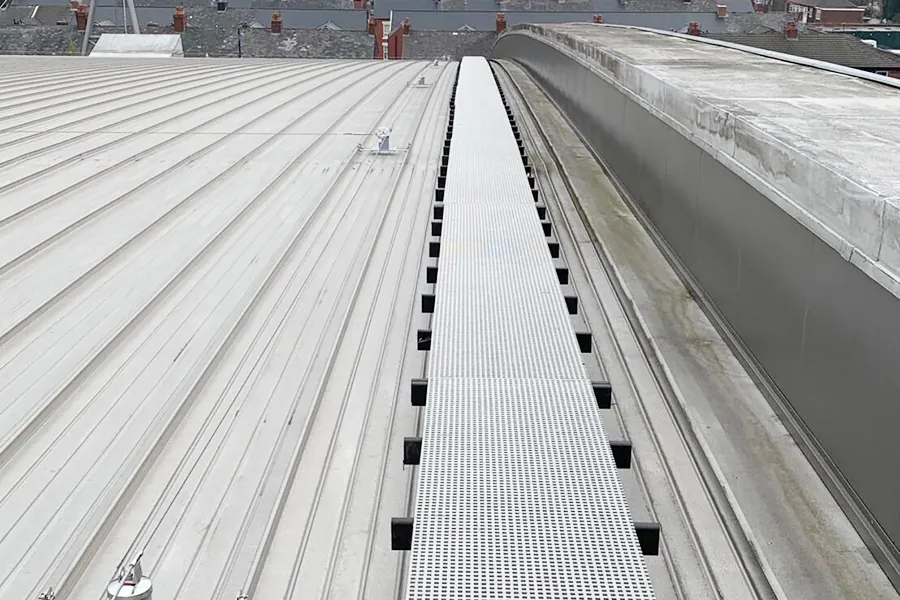

Rooftop Maintenance Walkway — Singapore

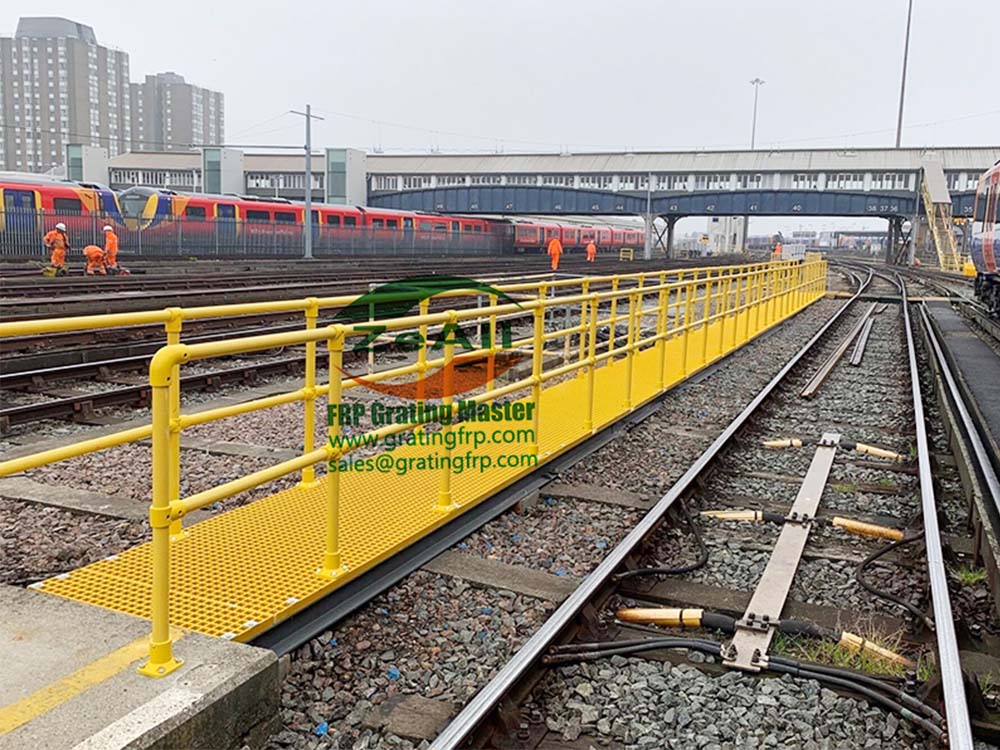

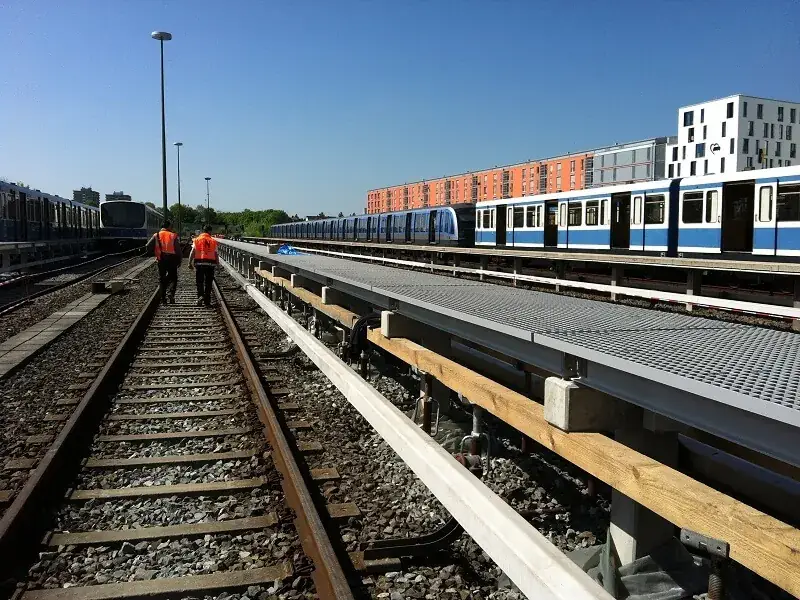

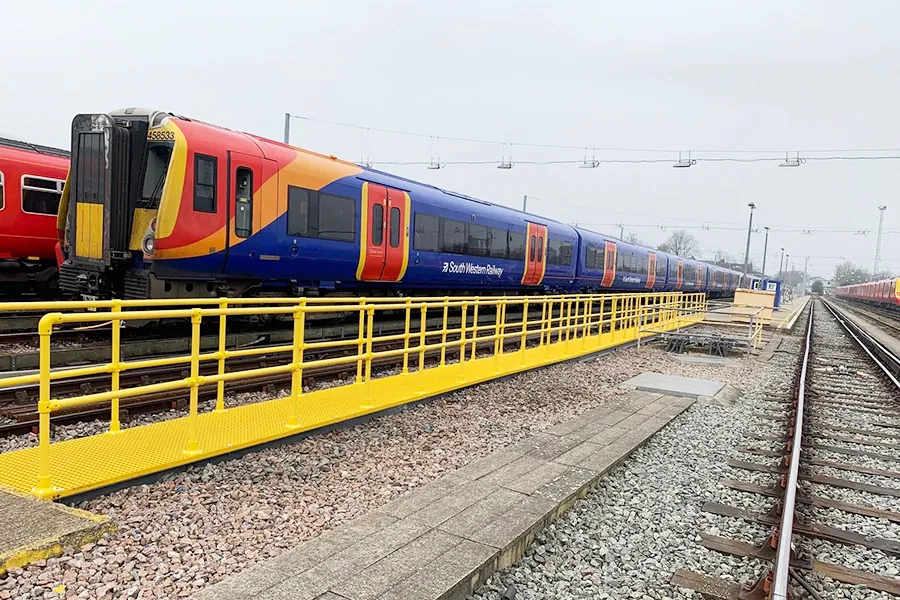

Rail Depot Platform — UK

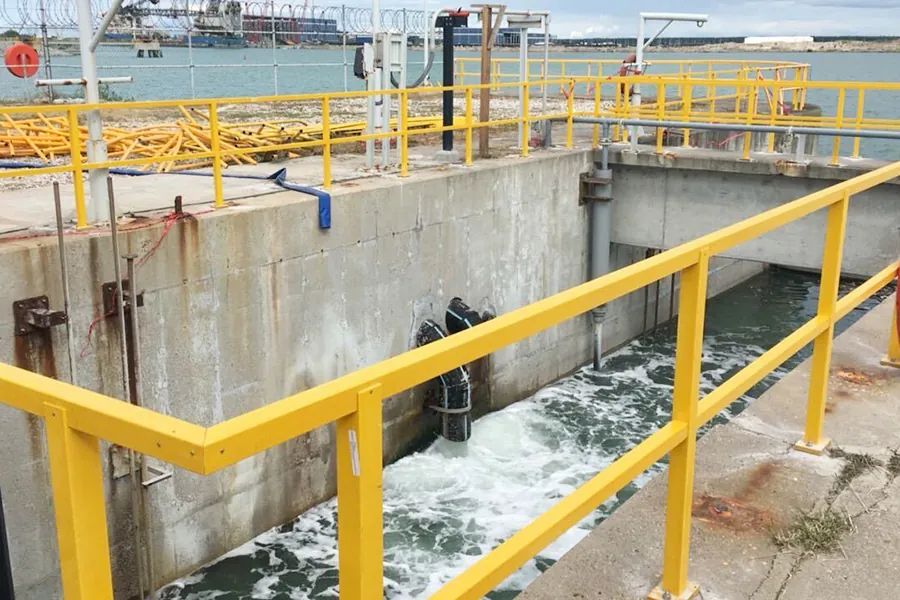

Marine Lock & Waterway — France

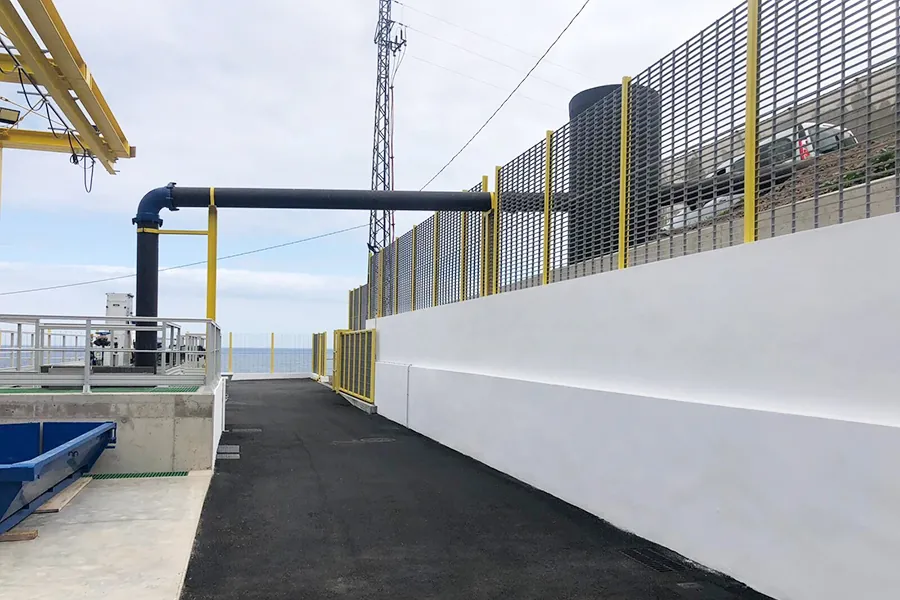

Coastal Desalination Plant — Spain

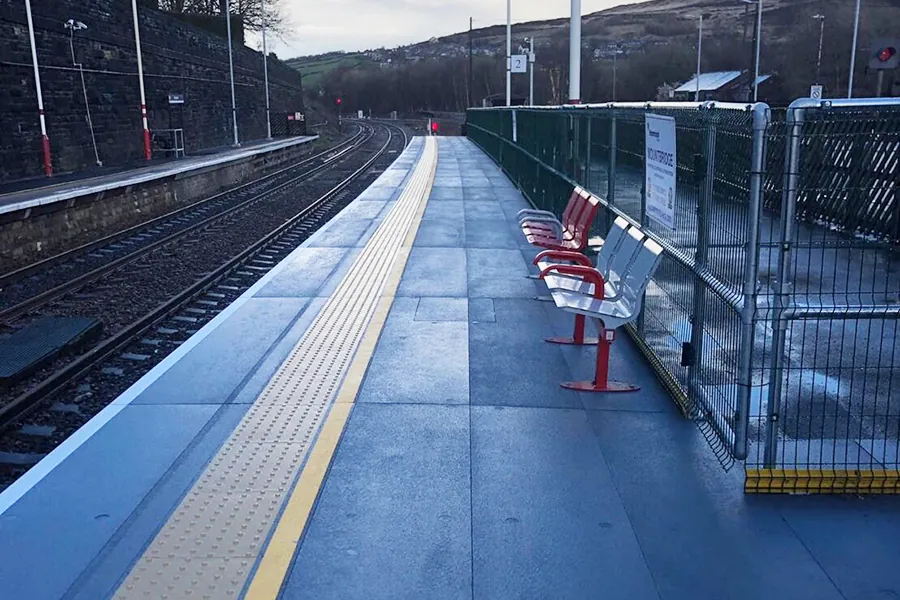

Railway Station Platform — Brazil
Rail Maintenance Walkway — South Africa

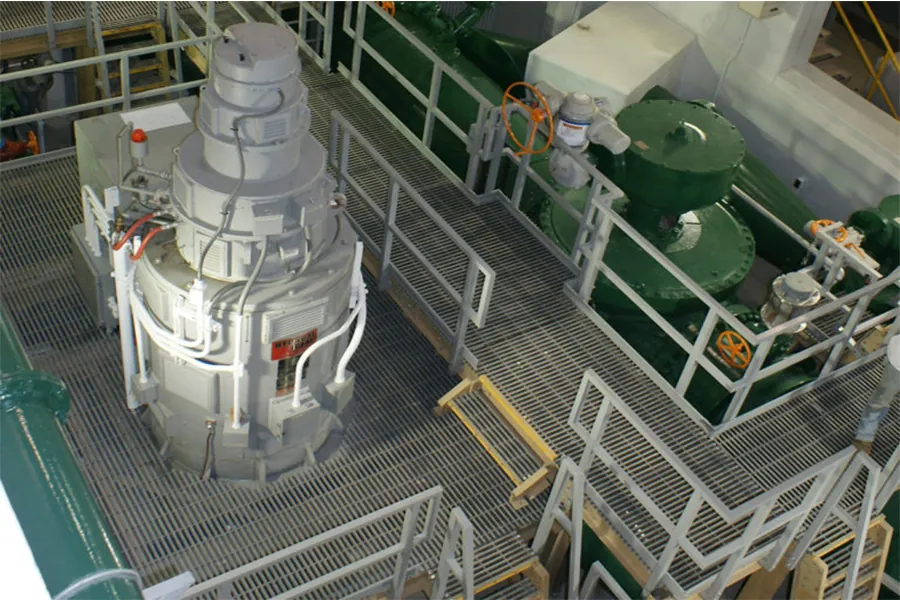

Industrial Process Platform — Japan
Harbor Ferry Walkway — South Korea

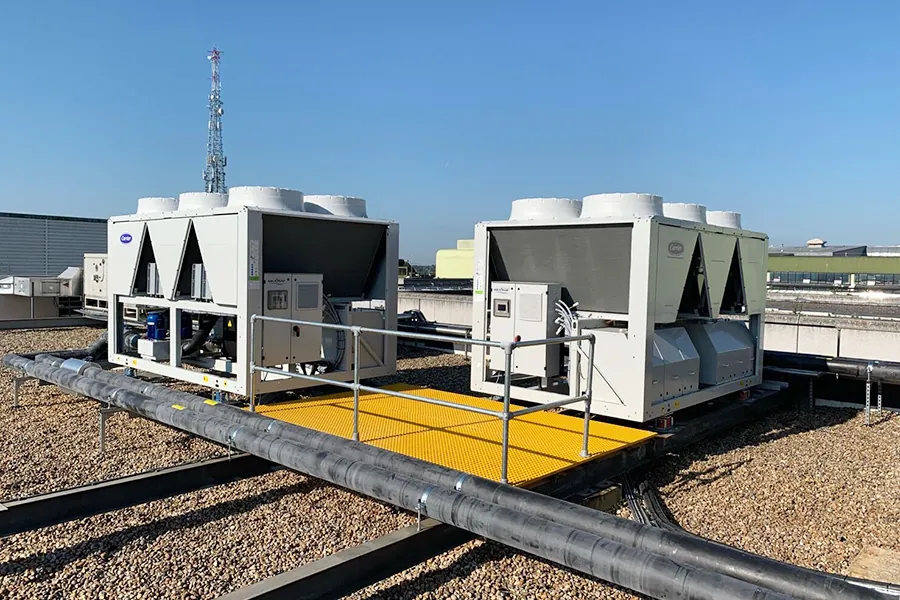

Rooftop HVAC Platform — India
What Our Clients Say
"FRP Grating Master has been our FRP grating supplier for 3 years. Their molded grating for our wastewater plant holds up perfectly in corrosive environments. Factory-direct pricing and reliable lead times."
"We ordered pultruded grating and handrail systems for a bridge deck project. Engineering team helped with load calculations and resin selection. Quality exceeded ASTM standards."
"Consistent dimensional quality across multiple shipments. ISO9001 certified production shows in every batch. The clips and profiles are precision-made. Highly recommended."
Solutions for Every Industry

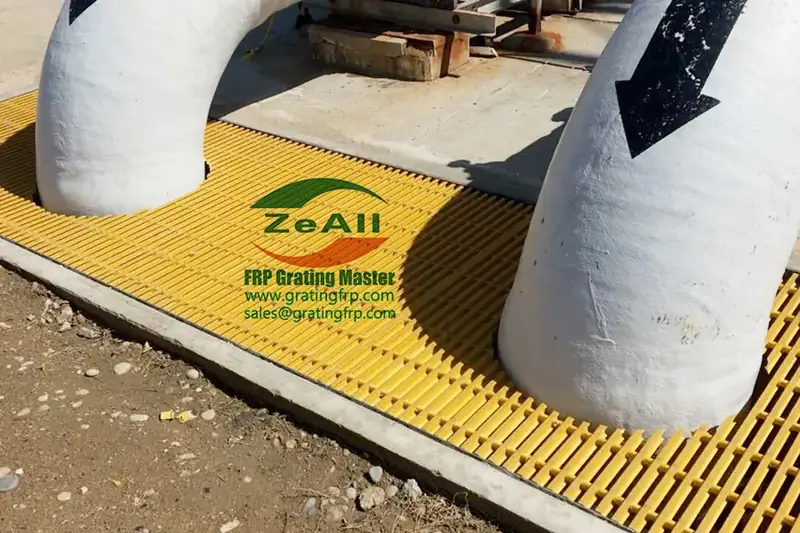

Chemical Plants
Vinyl ester & vinylester grating for acid/alkali environments. Zero corrosion.

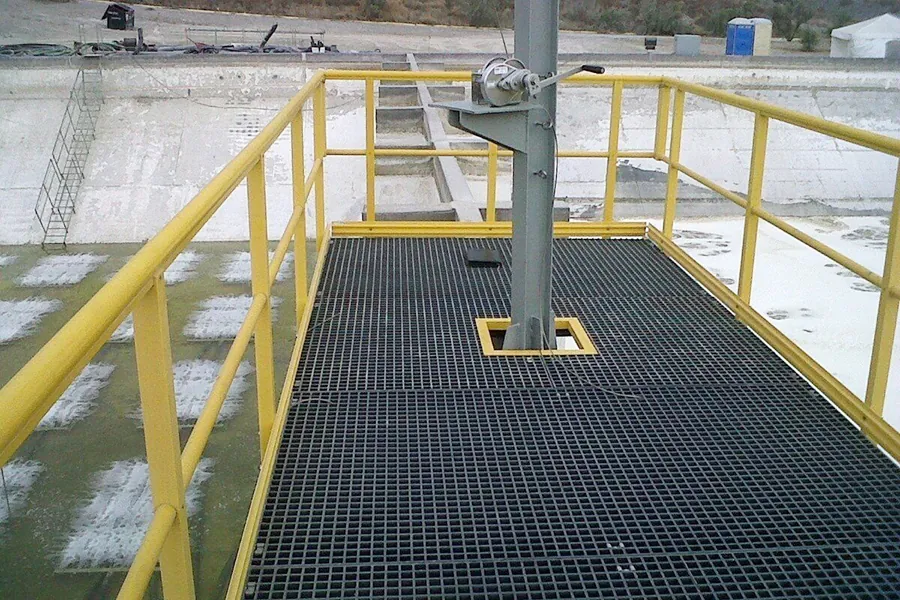

Wastewater Treatment

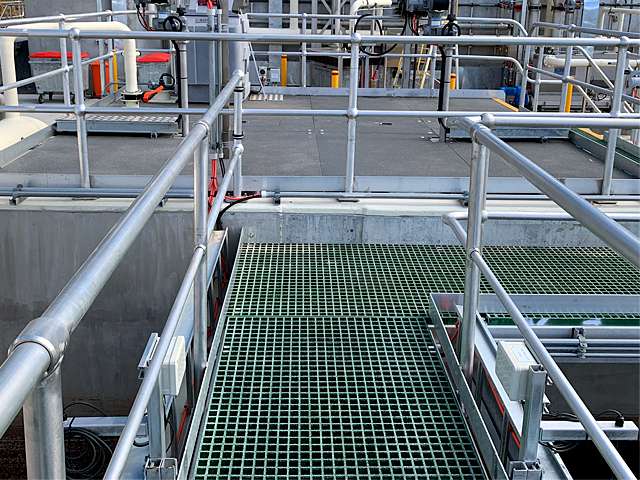

H2S-resistant molded grating for tank covers, walkways and clarifiers.

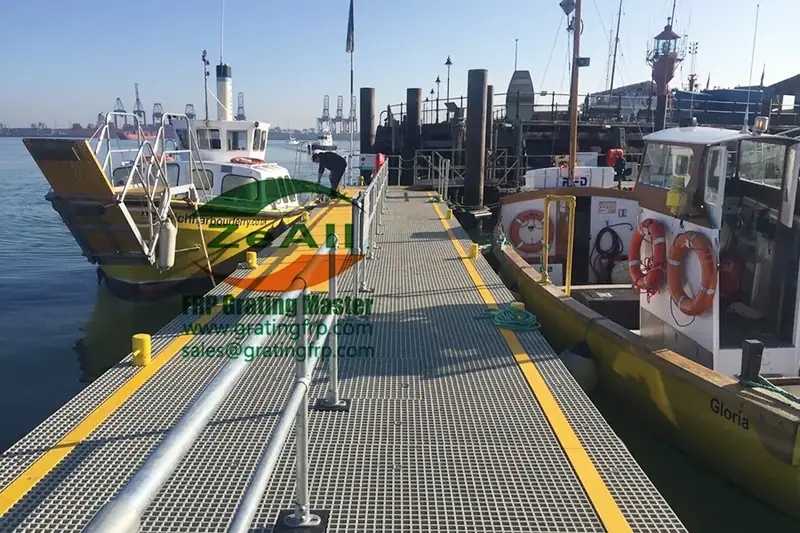

Marine & Offshore
Salt-spray resistant handrails, grating and ladders for rigs, jetties and pontoons.
Power Plants
Non-conductive grating for substations, cable trenches and turbine platforms.
Industrial Walkways
Anti-slip pultruded grating for heavy-duty access platforms and stair treads.
Food & Pharma
FDA-compliant white grating for food processing, breweries and clean rooms.
Your FRP Project, Step by Step
Needs Analysis
Tell us your application, load, environment and dimensions. Our engineers reply within 24h.
Free Engineering
We calculate load span, recommend resin system and provide detailed drawings.
Sample Approval
Free samples shipped worldwide. Confirm quality, color and finish before bulk order.
Production & Ship
Standard lead time 2-4 weeks. Global shipping with full QC inspection reports.
Insights & Technical Guides
Project Case StudiesFRP Grating Marine Offshore Projects
Read ArticleProject Case StudiesFRP Grating Chemical Plant Case Studies
Read ArticleProject Case StudiesFRP Grating Wastewater Projects
Read ArticleProject Case StudiesFRP Grating Rail & Transit Case Studies
Read ArticleProject Case StudiesFRP Grating Solar Rooftop & Power Cases
Read ArticleBuying GuidesFRP Grating FAQ: Sizes, Load, Installation & Orders
Read ArticleProduct GuidesMicro Mesh FRP Grating: Complete Guide to Mini Mesh Fiberglass Grating
Read ArticleMunicipal & LandscapeFRP Tree Grate: Durable FRP Tree Pit Grating for Urban Landscaping
Read ArticleNeed a Custom FRP Solution for Your Project?
Send your requirement to our engineering team — we provide material recommendations, structural calculations and quotations within 24 working hours.
Product Catalogue
Complete FRP grating & composite product catalog with technical specifications. Browse online or download the full PDF catalogue.
FRP Grating & Composite Solutions Catalogue
Edition 2026 · Volume 1 · Nantong, Jiangsu, China
Catalogue Contents

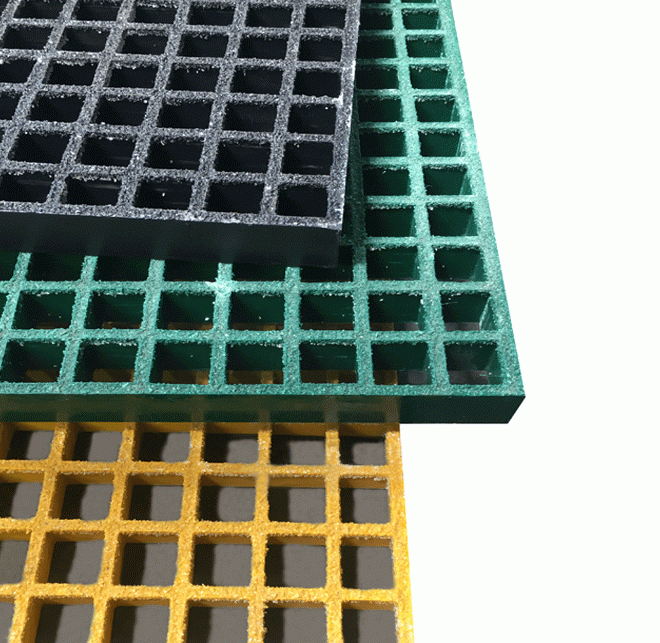

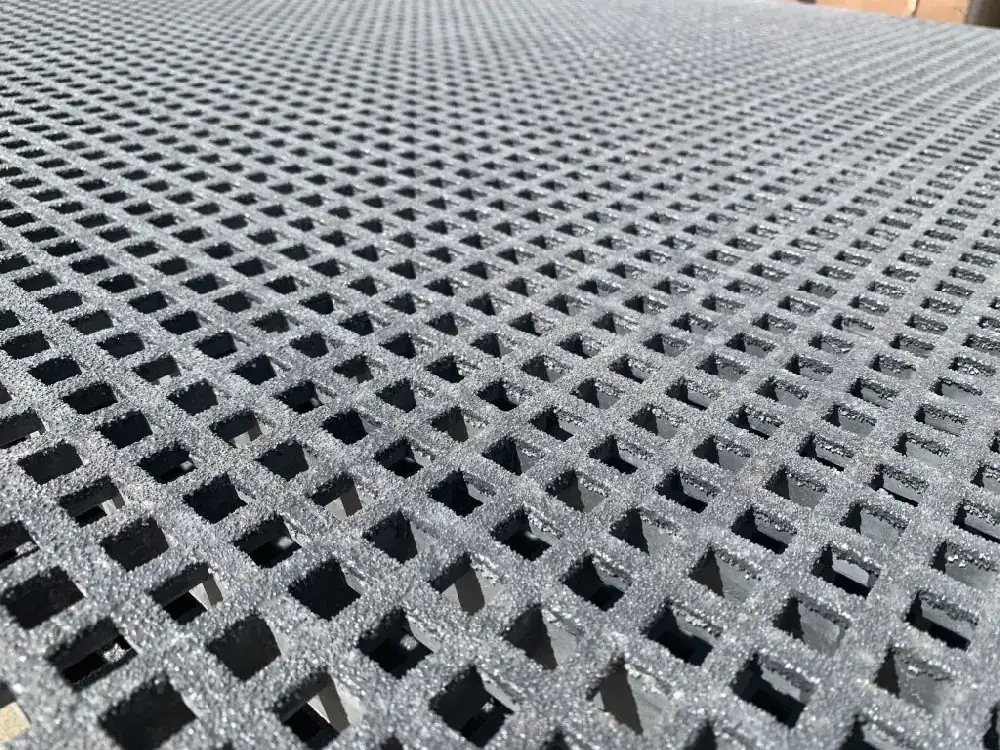

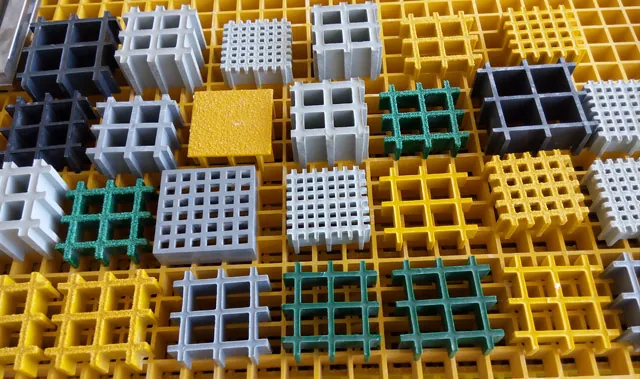

FRP Molded Grating
High corrosion-resistance molded fiberglass grating for walkways, platforms and flooring.
Key Features
- Superior chemical & corrosion resistance
- Integral anti-slip grit surface option
- Light-weight, easy cutting & installation
- Non-magnetic, electrical insulation
- Low maintenance, long service life
Available Colors
Technical Specifications
| Thickness | 25 / 30 / 38 / 50 mm |
|---|---|
| Panel Size | 1220 × 3660 mm (custom) |
| Mesh Size | 38×38 / 40×40 mm |
| Resin Type | Polyester / Isophthalic / Vinyl Ester |
| Surface | Smooth / Grit / Concave |
| Load Class | Light / Medium / Heavy duty |

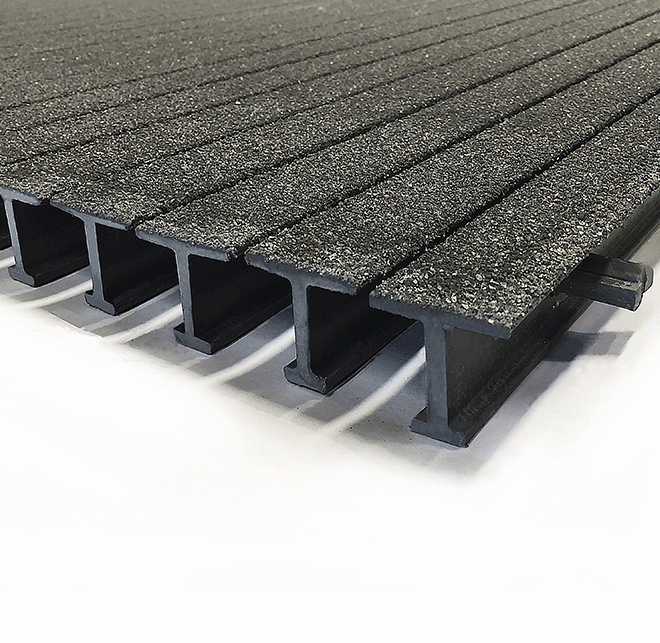

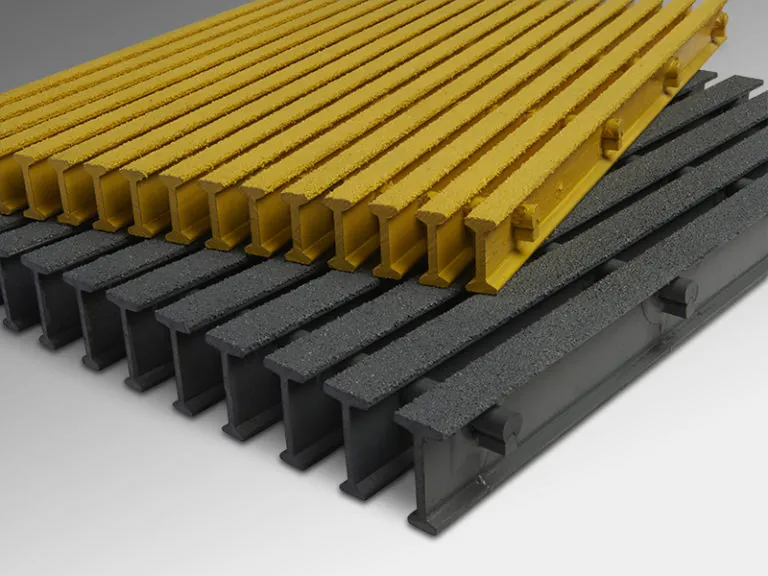

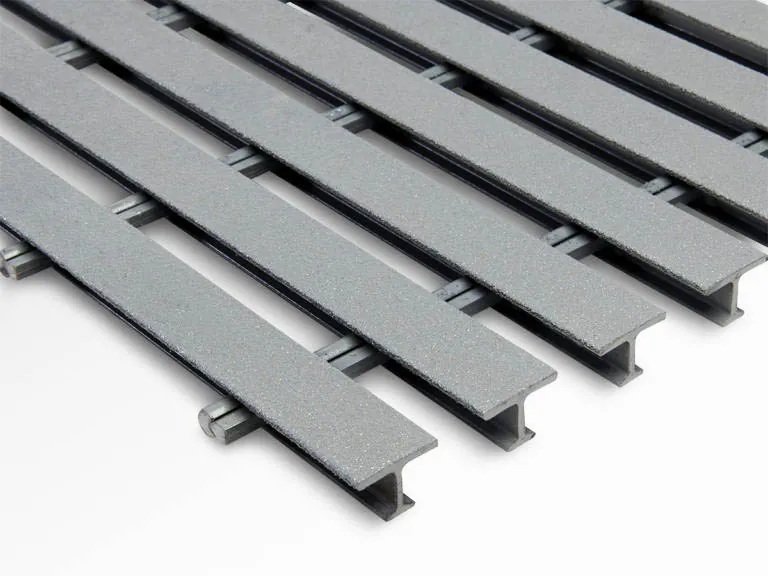

FRP Pultruded Grating
FRP Pultruded Grating: continuous pultrusion with uniform cross-section strength, high load capacity, I-bar/T-bar profiles. Acid-alkali corrosion resistant, lightweight, non-conductive, anti-slip gritted surface. Ideal for heavy-duty platforms, solar PV walkways, power plants, mining & marine. Direct steel replacement.
Key Features
- High load capacity & stiffness
- Uniform cross-section strength
- Available in multiple bar profiles
- Excellent for heavy machinery areas
- Fire-retardant resin option
Available Colors
Technical Specifications
| Thickness | 25 / 38 / 50 mm |
|---|---|
| Bar Profile | I-shape / T-shape / custom |
| Mesh Size | Custom spacing |
| Resin Type | Isophthalic / Vinyl Ester |
| Surface | Grit / plain |
| Bar Height | 38 / 50 / 65 mm |

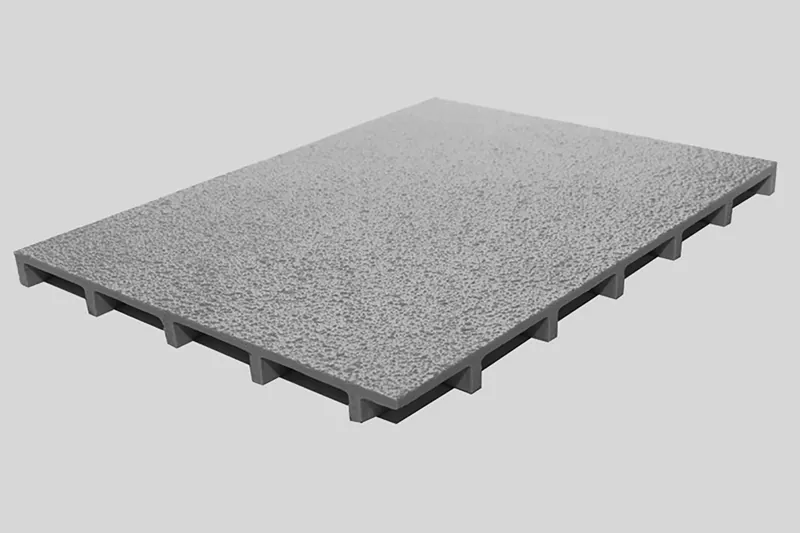

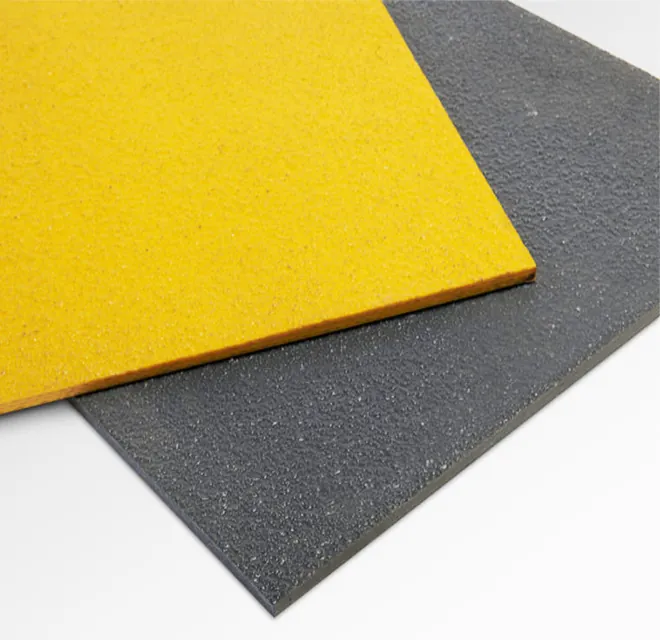

FRP Covers & Panels
Solid and gritted FRP cover panels for trench covers, floor panels and equipment enclosures.
Key Features
- Solid surface with anti-slip grit option
- Covers trenches, drains and floor openings
- Corrosion-resistant alternative to steel
- Custom cut-outs and sizes available
- Load-rated for pedestrian & vehicle traffic
Available Colors
Technical Specifications
| Thickness | 25 / 38 / 50 mm |
|---|---|
| Surface | Smooth / gritted top |
| Panel Size | Custom cut to size |
| Resin Type | Isophthalic / Vinyl Ester |
| Load Rating | Pedestrian / Light vehicle / Heavy |
| Application | Trench / drain / floor / equipment |

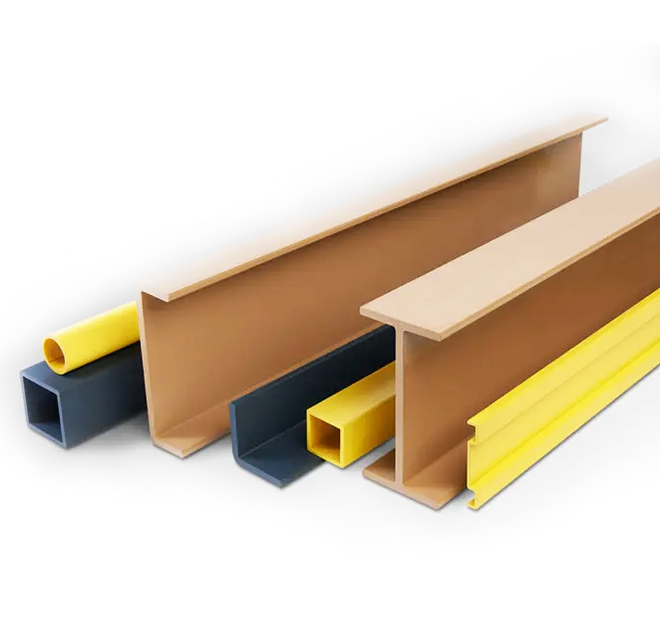

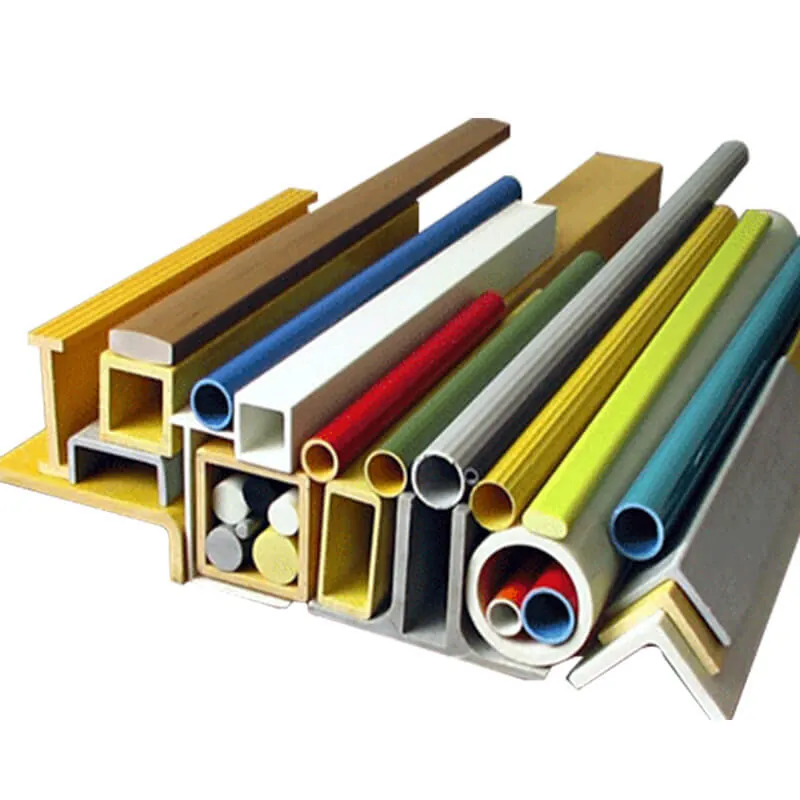

FRP Pultruded Profiles
Custom fiberglass structural profiles, beams, tubes and angles for demanding composite structures.
Key Features
- High strength-to-weight ratio
- UV-resistant & corrosion-proof
- Custom cross-sections available
- Non-conductive electrical insulation
- Consistent dimensional quality
Available Colors
Technical Specifications
| Profile Types | I / H / U / C / L / Tube / Bar / Angle |
|---|---|
| Length | Custom (up to 12m) |
| Resin Type | Ortho Polyester / Isophthalic / Vinyl Ester |
| Surface | Smooth / textured |
| Fiber Content | 60-75% by weight |
| Application | Structural / cable tray / frame / housing |

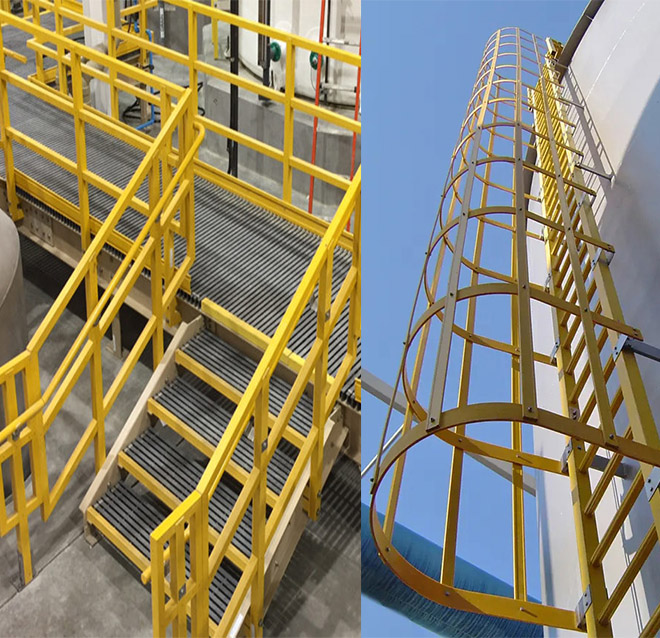

FRP Handrail & Stair System
Complete non-corrosive FRP safety railing, handrail and stair systems for industrial platforms.
Key Features
- Complete railing & stair packages
- Corrosion-resistant for marine & chemical use
- Easy modular installation
- Meets industrial safety standards
- Non-conductive for electrical safety
Available Colors
Technical Specifications
| System Components | Handrail / Midrail / Posts / Kits / Stairs |
|---|---|
| Height | 900 / 1100 mm |
| Material | Pultruded FRP + SS316 hardware |
| Post Size | 50×50 / 60×60 mm square tube |
| Handrail Size | Ø40 / Ø50 mm round tube |
| Standard | OSHA / EN ISO 14122 |

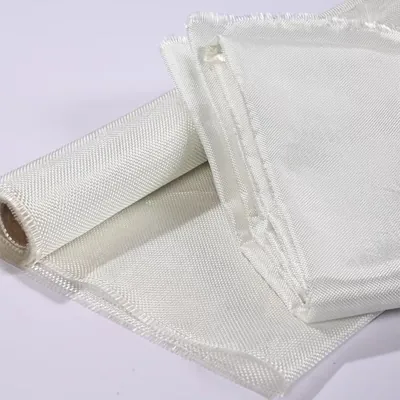

Fiberglass Fabric
High-quality C-glass & E-glass fiberglass fabric for FRP molding, marine composites, electrical insulation and industrial reinforcement.
Key Features
- High tensile strength & dimensional stability
- Excellent electrical insulation properties
- Heat & fire resistant, low thermal conductivity
- Compatible with polyester, vinyl ester & epoxy resins
- Uniform weave, consistent thickness & controlled resin uptake
Glass Types
Technical Specifications
| Glass Type | C-glass / E-glass / S-glass |
|---|---|
| Weight | 200 / 260 / 300 / 400 g/m² |
| Weave | Plain / Twill / Satin |
| Width | 1000 / 1270 / 1500 mm (custom) |
| Density | 8×8 / 10×10 / 12×12 per inch |
| Length | 50m / 100m per roll |

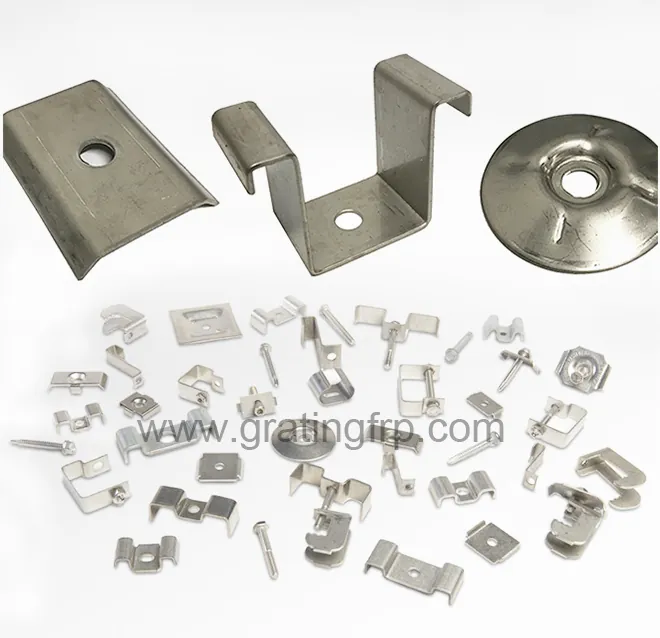

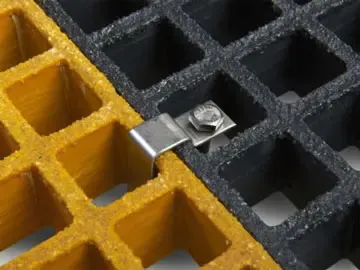

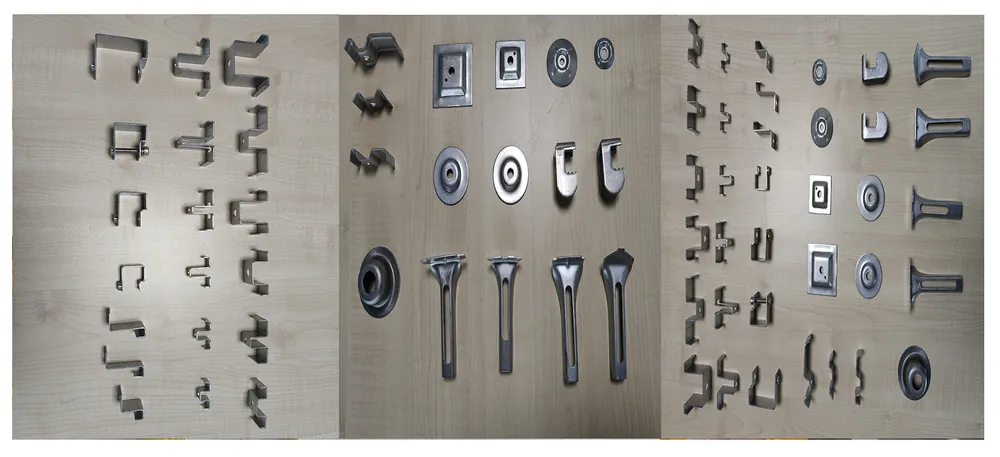

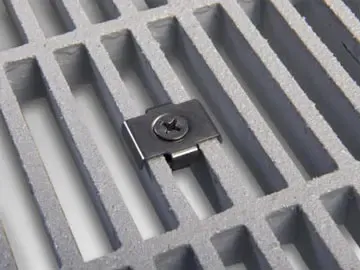

Grating Clips
Stainless steel & FRP grating clips and fasteners for secure installation of FRP grating to support structures.
Key Features
- Secure FRP grating to steel & FRP support structures
- Stainless steel SS304 / SS316 & FRP material options
- Easy installation, removal and maintenance
- Corrosion-resistant for harsh chemical & marine environments
- Multiple clip types fit all standard grating profiles
Clip Types
Technical Specifications
| Material | SS304 / SS316 Stainless Steel / FRP |
|---|---|
| Clip Type | M-clip / C-clip / G-clip / custom |
| Fit Grating | 25 / 30 / 38 / 50 mm thickness |
| Surface | Polished / passivated / coated |
| Hardware | Bolt & nut included (SS316) |
| Packing | 100 pcs / bag or custom |

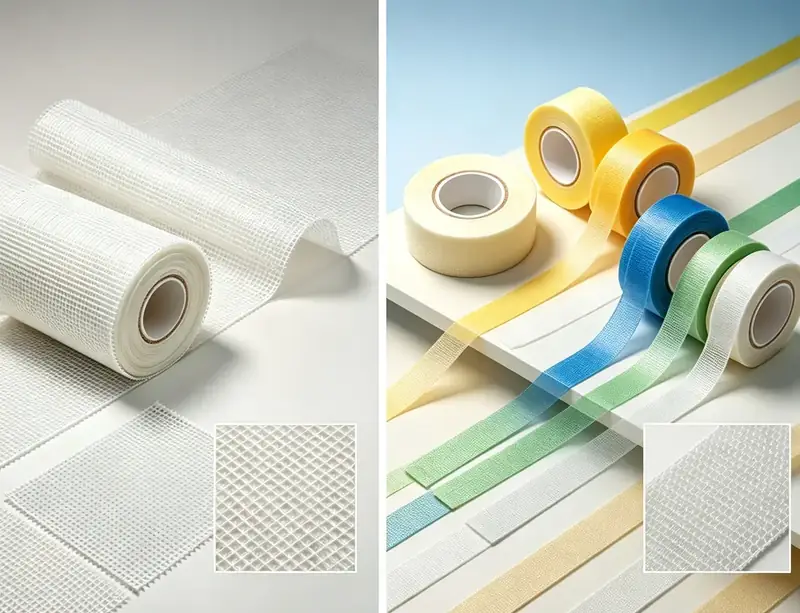

Fiberglass Mesh & Tape
Alkali-resistant fiberglass mesh & self-adhesive tape for wall insulation, joint repair and composite reinforcement.
Key Features
- Full custom design & molding
- Wide resin & reinforcement choice
- Rapid prototyping support
- In-house tooling fabrication
- Low to high volume production
Process Options
Product Specifications
| Step 1 | Requirement analysis & material selection |
|---|---|
| Step 2 | CAD design & structural calculation |
| Step 3 | Prototype & sample for approval |
| Step 4 | Tooling & mold fabrication |
| Step 5 | Mass production with QC |
| Step 6 | Final inspection & global shipment |
Technical Documents & Catalogues
Browse and download our complete range of technical documents. Preview online or download PDF files directly.
FRP Molded Grating Product Catalogue
Complete molded fiberglass grating product range with specifications, dimensions, resin grades and application guidelines.
Molded FRP Grating Technical Manual
Comprehensive engineering guidelines for engineer-designers covering molded FRP grating specifications, load tables, resin grades, installation and application standards.
FRP Pultruded Grating Product Catalogue
Complete pultruded fiberglass grating product range with engineering data, load capacity charts, profile dimensions and custom options.
FRP Pultruded Profiles & Structural Shapes Catalogue
Complete range of pultruded fiberglass structural shapes including angles, channels, I-beams, tubes, rods and custom profiles with engineering data and load tables.
Company Profile & Capability Brochure
Company certifications including ABS PDA certificates and Intertek ASTM F3059 test report, demonstrating product quality compliance and manufacturing capabilities.
FRP Molded Grating Specifications
Complete technical specifications for FRP molded grating — dimensions, mesh sizes, resin systems, surface options, load ratings and chemical resistance data.
FRP Heavy Duty Grating Catalogue
Heavy-duty FRP molded grating for high-load industrial applications — 50mm thickness, reinforced bearing bars, load tables and installation guidelines.
FRP Mini Mesh Grating Catalogue
Mini mesh (19×19mm) FRP grating for high-heel friendly walkways, public areas and applications where small openings are required — prevents objects falling through.
FRP Engineer & Designer Guidelines
Comprehensive engineering guide for FRP grating selection, load calculations, span tables, chemical resistance, fire performance and installation best practices for specifiers and designers.
FRP Pultruded Grating Specification
Complete technical specifications for FRP pultruded grating — bearing bar dimensions, load/span tables, resin systems, surface options, fire ratings and compliance with ASTM & EN standards.
FRP Structural Shapes Design Guide
Design guide for FRP pultruded structural shapes — I-beam, channel, angle, tube properties, load calculations, connection design, buckling analysis and specification guidance for engineers.
FRP Structural Shapes Specification
FRP Grating Master standard specifications for FRP pultruded structural shapes — I-beam, channel, angle, square/round tube dimensions, wall thickness, material properties, resin systems and standard lengths.
FRP Ladders & Handrail Systems Catalogue
Complete catalogue for FRP handrail and ladder systems — round tube & square tube handrails, ladder with safety cage, components, dimensions, installation guidelines and corrosion-resistant specifications.
FRP Grating Clips Specification
Complete specifications for FRP grating installation fasteners — M-Clip, C-Clip, L-Clip, Z-Clip types, SS304/SS316/HDG materials, bolt sizes, base plates and installation guidelines.
FRP Grating Master Fiberglass Mesh & Tape Product Datasheet
Complete datasheet for fiberglass mesh and tape products — C-glass/E-glass mesh, alkali-resistant tape, specifications, weights, rolls and industrial reinforcement applications.
Industry Applications
Proven FRP grating solutions across the most demanding sectors — engineered for corrosion resistance, structural load and operational safety.
Frequently Asked Questions
Answers on custom options, samples, lead time, resin grades, quality control and shipment.
Contact Us
Submit your project requirement — our engineering and sales team replies within 24 working hours to [email protected].
Sales & Support
Tel: +86 513 6681 9918
Sales Manager: +86 139 6296 2332
Email: [email protected]
Head Office & Factory
Nantong, Jiangsu, China
FRP Composite Manufacturing Facility
Working Hours
Mon – Sat · 08:30 – 18:00 (GMT+8)
